Kitchen Make-Up Air Unit

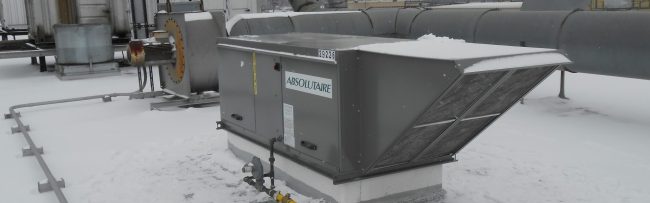

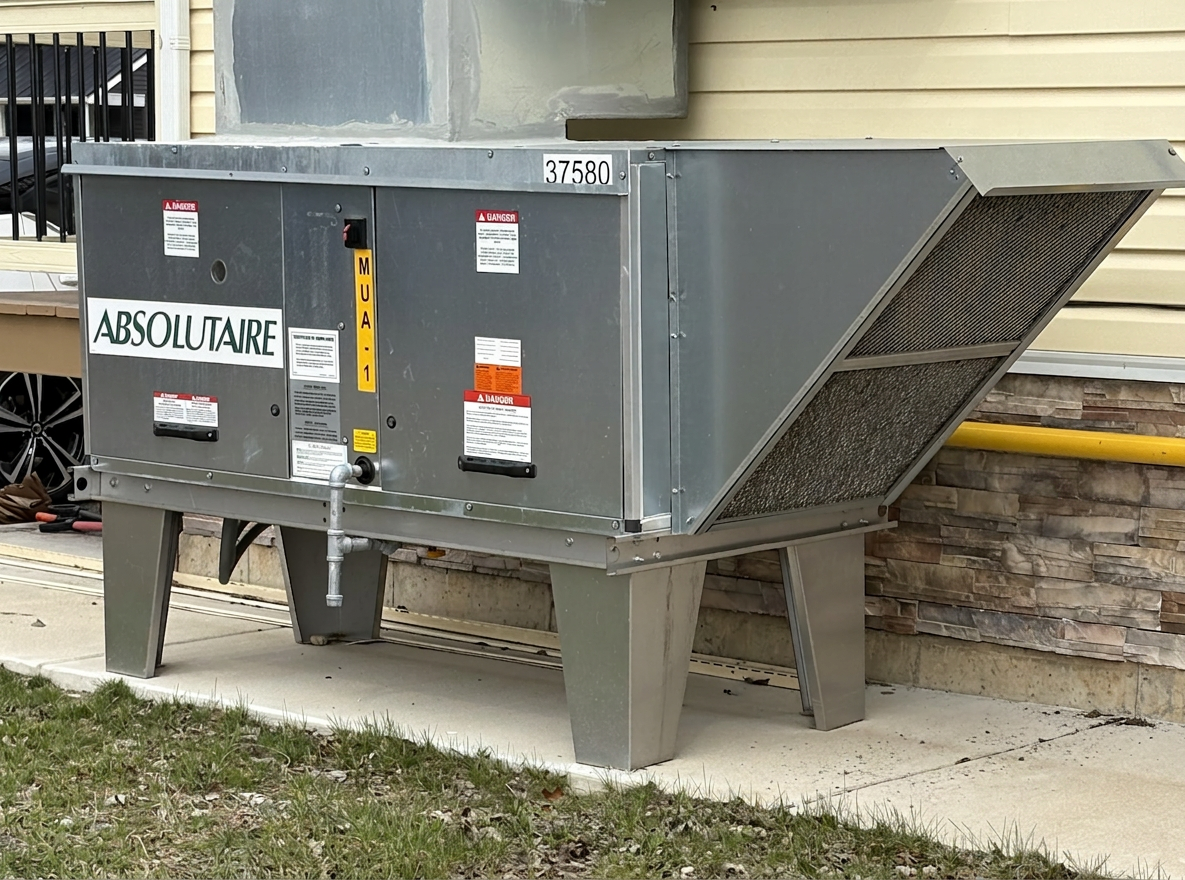

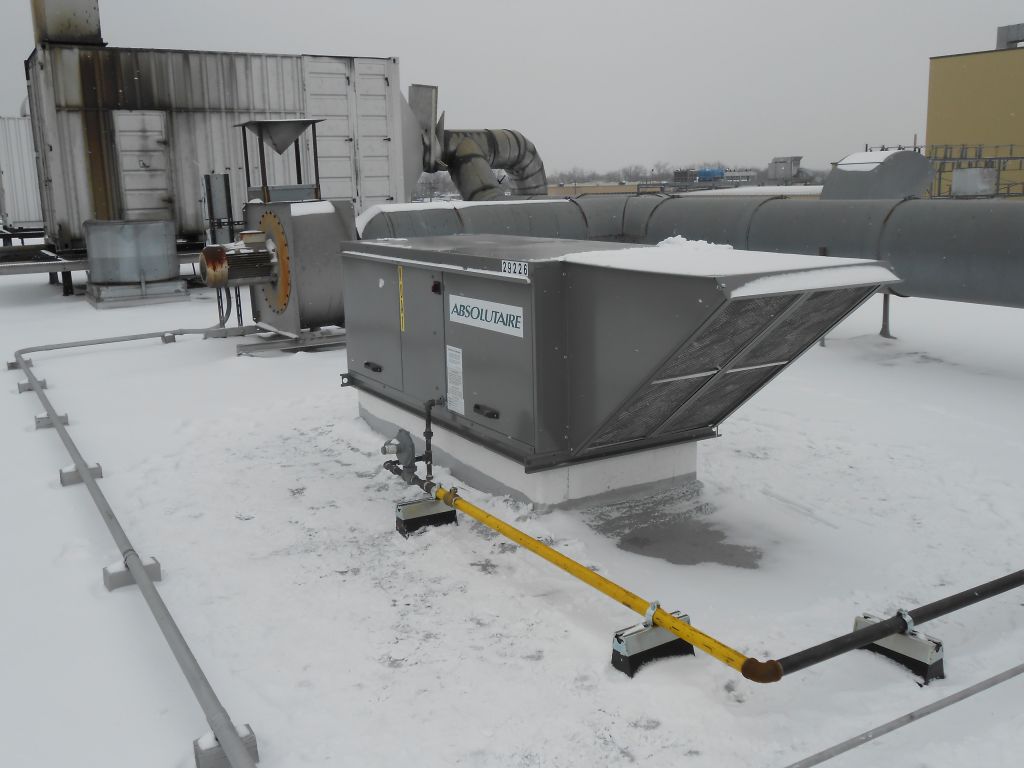

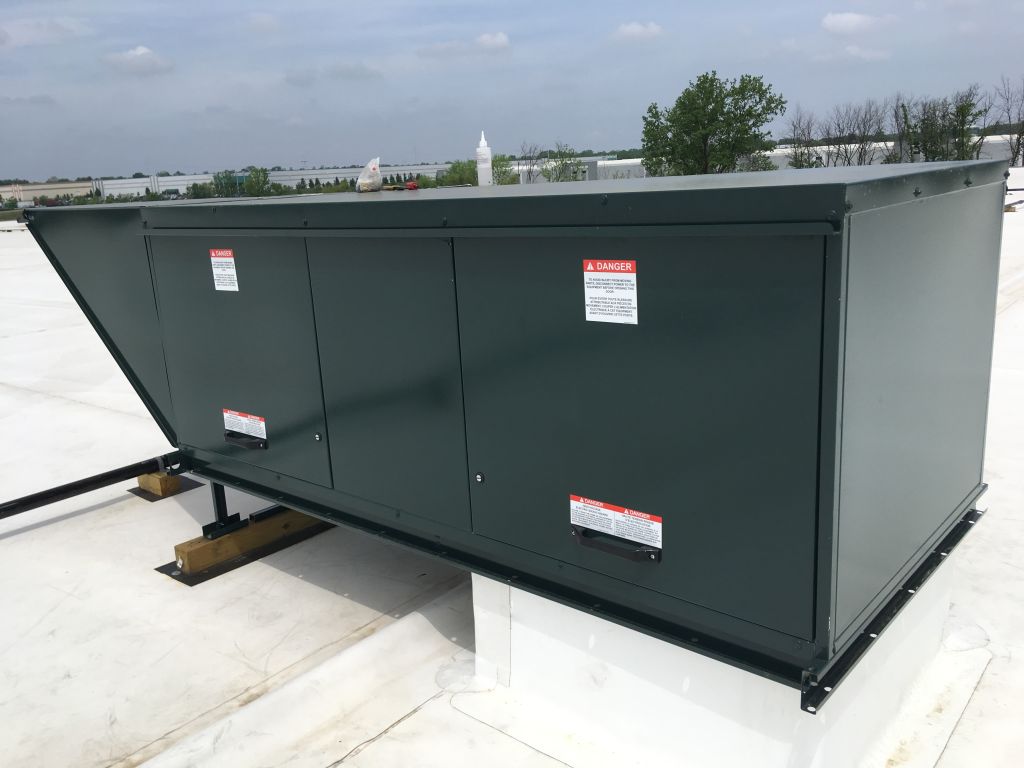

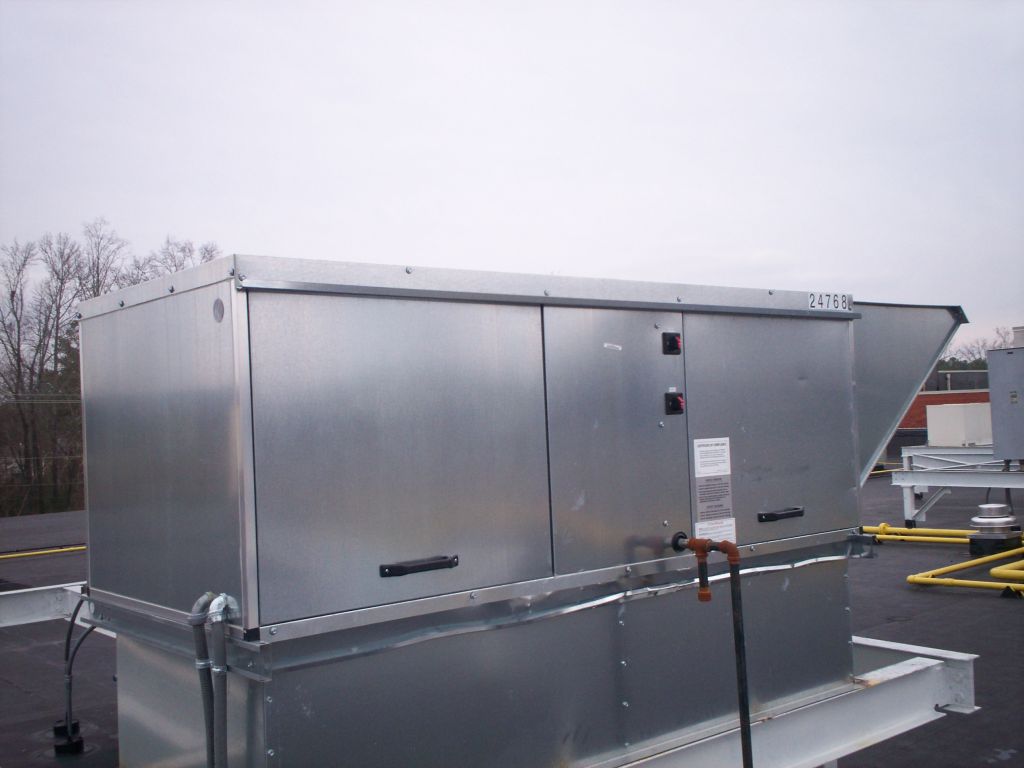

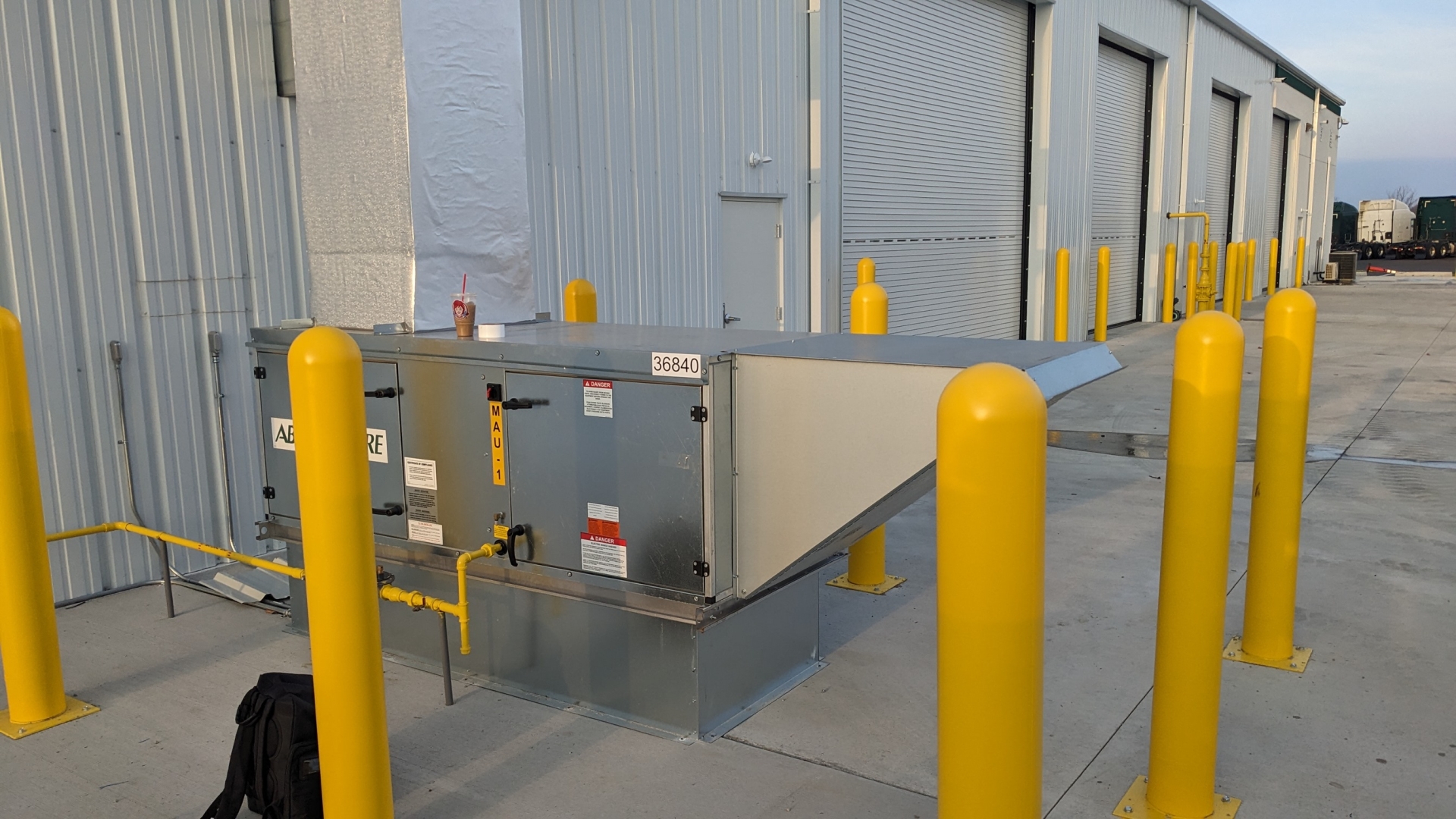

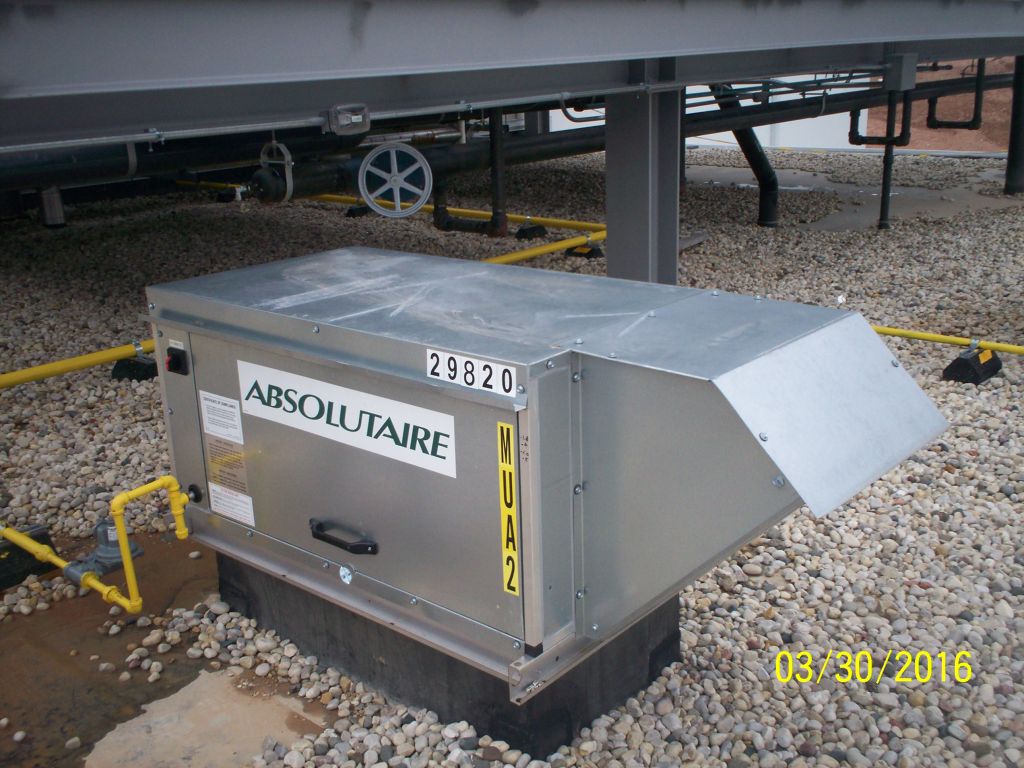

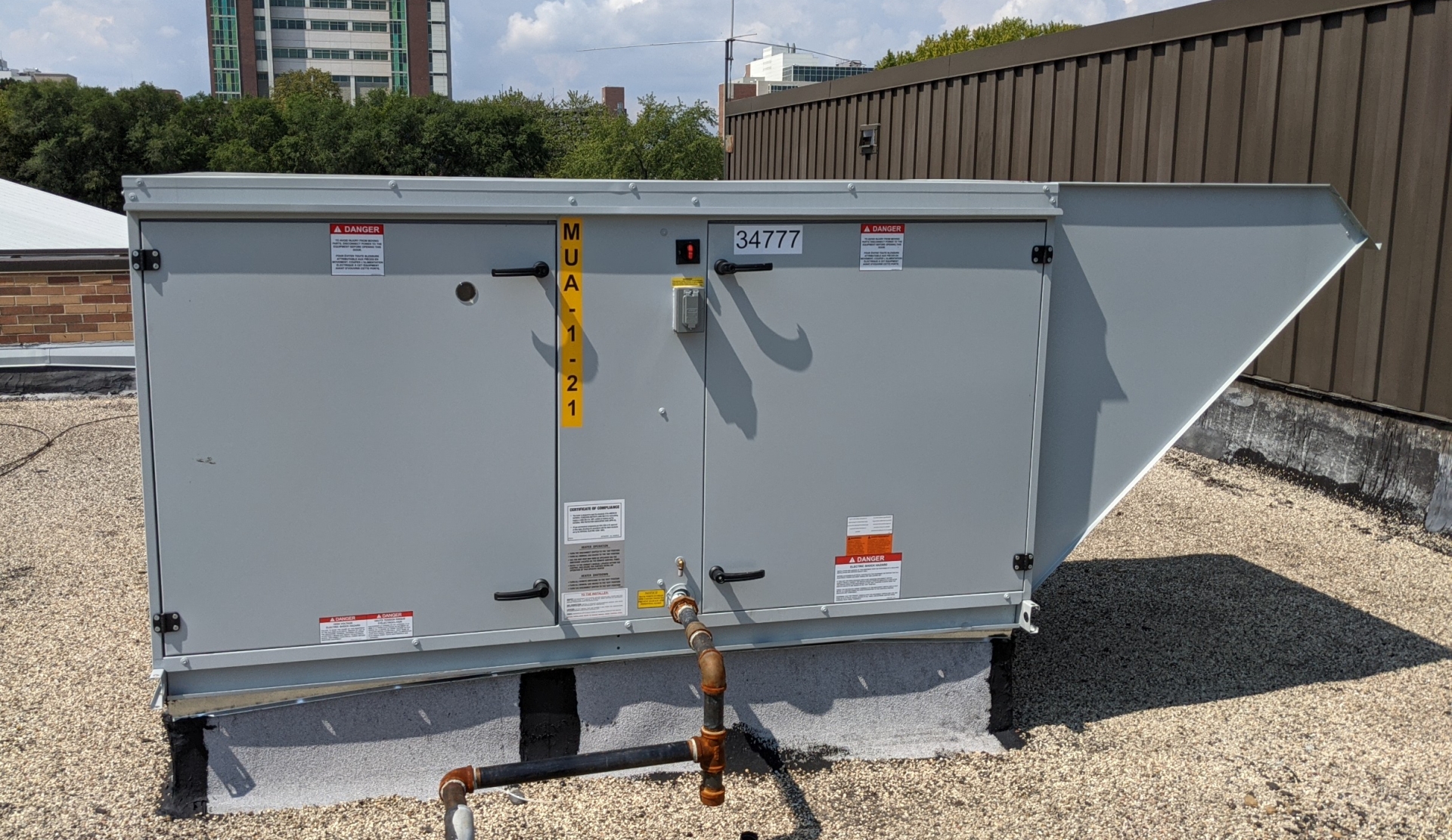

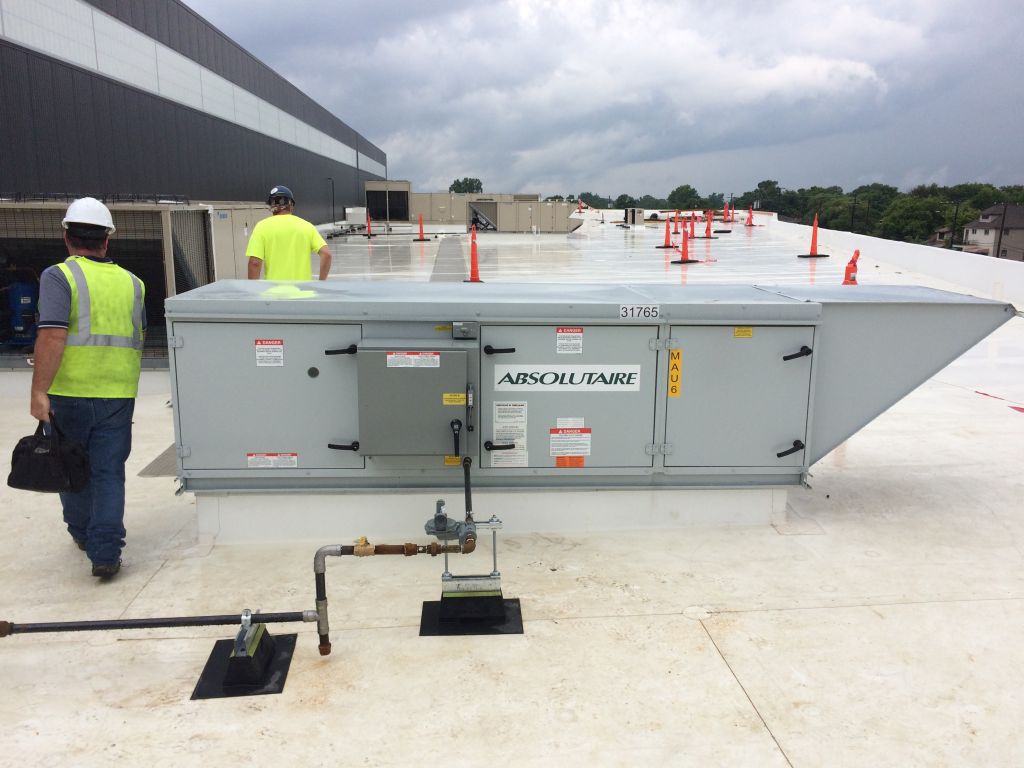

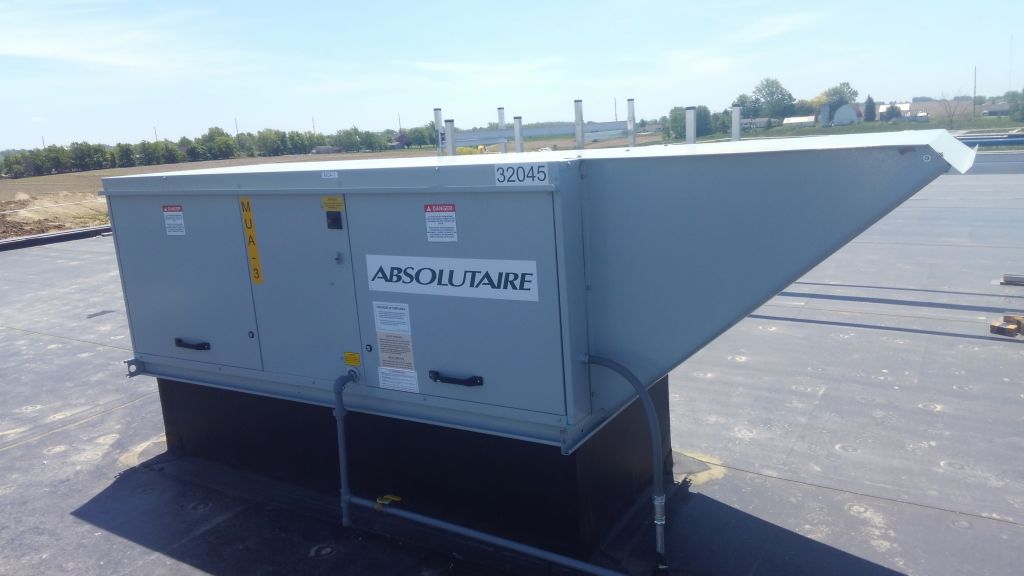

V-Series - Direct Fired Make-up Air System

With value-driven design excellence, V-Series direct-fired make up air unit systems offer unsurpassed economy, application versatility, low maintenance durability, and exceptional product support. The line is ETL certified to ANSI standards.

  • V-SeriesCapacities from 800 to 13,000 CFM, 155 to 1,125 MBH (rating based on a unit operating at 750 ft. elevation
    and an outside air (OA) temperature of -10°F)
  • Natural and Propane Gas Available
  • 100% Fresh Air, Heated or Cooled
  • Weather-Tight, Non-Corrosive Skin
  • Auto-Profiler Gas Burner Adjustment System
  • Easy Access Service Areas Using Lift-Off Weather Tight Access Door
  • 1” Foil Face Insulation Standard
  • Quiet Efficiency: Moving Air Using a Solidly Assembled Vibration-Isolated Fan Motor Assembly (neoprene rubber)
  • Advanced V-Series Burner Technology with 30:1 Turndown Capacity: Includes Low Maintenance, Cast Aluminum Manifolds with Non-Clogging, Stainless Steel Mixing Plates
  • Fan Bearings Rated for a Minimum L-10 Life of 100,000 Hours
  • Widely Used for Kitchen and Food Service Make-Up Air Applications
  • “Quick-Ship” Production Available
  • 90-Day, Two-Year Parts Limited Warranty

Direct-Fired Make-Up Air Systems are widely used in kitchen and food-service operations, as well as in other applications such as industrial processing and wastewater treatment.

For more information, contact sales@absolutaire.com
